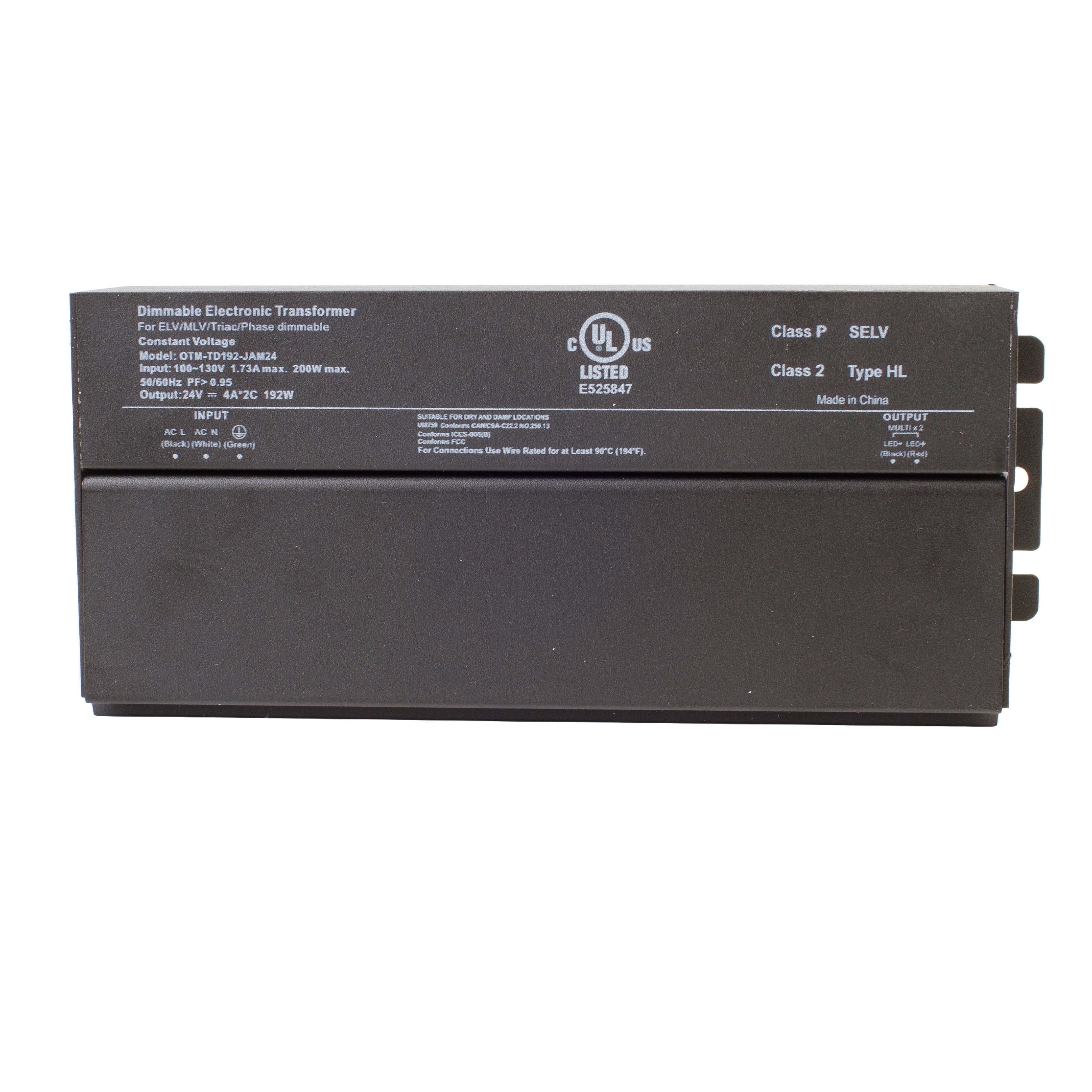

UL listed 24v 192w Class 2 (96wx2) Triac / ELV/ MLV electronic dimmable LED Driver

LED Updates

$ 85.99
SKU: pw242x96Mdim

Add to wishlist
Share:

This UL-listed 24V 192W (96W x 2) Triac electronic dimmable LED driver features a compact design with two independent 96W outputs, meeting Class 2 standards. It supports a wide range of AC wall dimmers, including Lutron and Leviton, making it ideal for LED strip lights, puck lights, and module lighting. Engineered for silent operation, it eliminates buzzing or humming, ensuring a smooth and reliable dimming experience.

An electronic transformer is value-priced compared to conventional drivers, has a smaller footprint, and turns on/off instantly without delay. Industry guidelines recommend using no more than 80% (76W) of its capacity per channel. Be sure to accurately calculate your load before connecting the power supply.

When tested with a multimeter, this electronic driver shows standard voltage variations: the output voltage may rise above 24V without a connected load. Once a load is applied, the voltage stabilizes below 24V, staying within a safe range. Keep in mind that voltage measurements can differ based on the multimeter model used.

Specification:

  • Output Frequency: 50/60HZ
  • Output Current: 4A per channel (2 Channels total)
  • Output Voltage: 24V
  • Input Voltage: 100V-130V
  • Size dimension: 7" L x 3" D x 1.6" H
  • Weight: 1 lb 10oz
  • Suitable for dry and damp locations

Warning: Do not overload. Each output is limited to 96w max.

Package content:

  • 1 Piece UL Listed 24V DC 4A 192w (96wx2) compact dimmable LED driver
